Sterilization Retort/Autoclave
  • Steam Retort
  • Product model:
  • Working voltage:
  • Working temperature:
  • power:

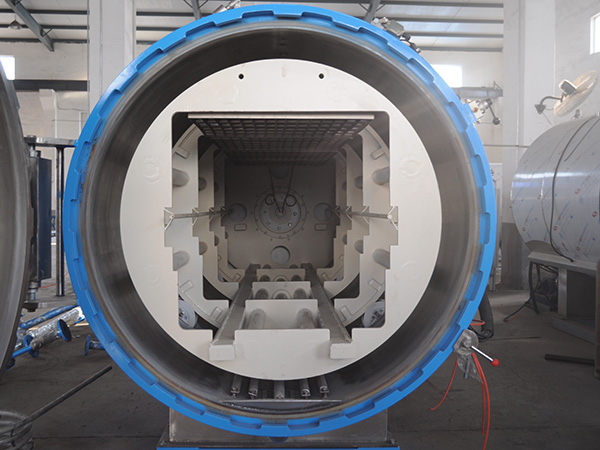

Steam Retort(The Retort with Rotary Vessel to Sterilize Plastic Bottle and Tin Can)

Are you looking for useful and durable steam retorts? We believe our rotary steam retort sterilizers will live up to your expectation. DTS is one of the biggest sterilization equipment supplier in China, we are able to offer you various unparalleled batch retorts, continuous retorts, static retorts and rotary retorts. The retort with rotary vessel is used to sterilize plastic bottle and tin can. We are looking forward to establishing sincere cooperative relationship with you. Please contact us if you need a trustworthy partner.

Features of Steam Retorts
1. The inside rotating body is made by using one-time molding process in machining center after being welded and assembled. The concentricity of axis and rotating body during rotation is controlled within ideal range.
2. The supporting rollers adopt antifriction bearing structure, boasting small rolling friction and long service life.
3. The transmission system incorporates a reduction box with braking function and an automatic positioning system, ensuring the crate guide rail of the rotating body stays horizontal with trolley guide rail and other guide rails of matched equipment after rotation stops.
4. The crate compaction system utilizes cylinder automatic and respective compaction. All the cylinders are made of alloy, avoiding many disadvantages such as inaccurate spring return of rotating crate cylinder, cylinder deformation and air leakage, etc.
5. The reduction box base is integrated into the rotary steam retort, successfully avoiding a series of problems resulting from concentricity change of transmission shaft brought by deformation of reduction box base and retort body.
6. The rotating speed is governed by frequency converter so that rotating speed can be adjusted anytime depending on product viscosity to avoid delamination and precipitate.

Technical Parameters
Item Unit 1500# 1800#
Retort inner diameter mm 1500 1500 1800 1800
Retort chamber length mm 4000 4850 6300 7500
Total volume 7.5 9 16.7 19.9
External dimensions(L*W*H) mm 5800*2510*2270 6650*2510*2270 8600*2700*2400 9800*2700*2400
Power kw 18 18 27.5 27.5
Design temperature °C 145
Operating temperature °C 125
Test pressure MPa 0.44
Design pressure MPa 0.35
Operating pressure MPa 0.25
Materials for main pressure-bearing parts S30408 Q235B 20# Q345R

The rotary steam retorts are well suitable for all kinds of high-viscosity products packaged with thermal resistant materials.
1. Plastic container: PP bottle, HDPE bottle
2. Metal container: tin can

Related Names
Rotary Steam Sterilization Retort, Steam Retort Sterilizer, Rotary Retort Machine
